错误处理速查表¶

简介¶

错误处理是应用程序整体安全的一部分。除了电影中，攻击总是始于一个侦察阶段，在此阶段中，攻击者会尝试收集尽可能多的关于目标的技术信息（通常是名称和版本属性），例如应用服务器、框架、库等。

未处理的错误可以协助攻击者进行这个初始阶段，这对于后续的攻击非常重要。

以下链接提供了攻击不同阶段的描述。

背景¶

错误处理级别的问题可以揭示大量关于目标的信息，也可以用于识别目标功能中的注入点。

下面是一个通过向用户呈现异常来披露技术栈的示例，这里是Struts2和Tomcat版本。

HTTP Status 500 - For input string: "null"

type Exception report

message For input string: "null"

description The server encountered an internal error that prevented it from fulfilling this request.

exception

java.lang.NumberFormatException: For input string: "null"
    java.lang.NumberFormatException.forInputString(NumberFormatException.java:65)
    java.lang.Integer.parseInt(Integer.java:492)
    java.lang.Integer.parseInt(Integer.java:527)
    sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
    sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    java.lang.reflect.Method.invoke(Method.java:606)
    com.opensymphony.xwork2.DefaultActionInvocation.invokeAction(DefaultActionInvocation.java:450)
    com.opensymphony.xwork2.DefaultActionInvocation.invokeActionOnly(DefaultActionInvocation.java:289)
    com.opensymphony.xwork2.DefaultActionInvocation.invoke(DefaultActionInvocation.java:252)
    org.apache.struts2.interceptor.debugging.DebuggingInterceptor.intercept(DebuggingInterceptor.java:256)
    com.opensymphony.xwork2.DefaultActionInvocation.invoke(DefaultActionInvocation.java:246)
    ...

note: The full stack trace of the root cause is available in the Apache Tomcat/7.0.56 logs.

下面是一个SQL查询错误及其站点安装路径的披露示例，可用于识别注入点。

Warning: odbc_fetch_array() expects parameter /1 to be resource, boolean given
in D:\app\index_new.php on line 188

OWASP测试指南提供了从应用程序获取技术信息的不同技术。

目标¶

本文展示了如何将全局错误处理器配置为应用程序运行时配置的一部分。在某些情况下，将此错误处理器定义为代码的一部分可能更高效。结果是，当发生意外错误时，应用程序会返回一个通用响应，但错误详细信息会在服务器端记录以供调查，而不会返回给用户。

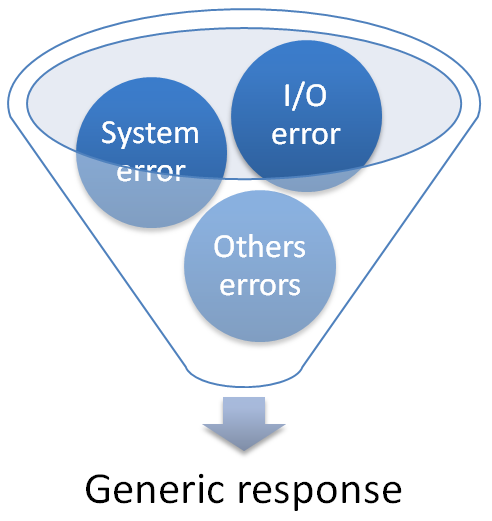

以下图表显示了目标方法

Overview

由于最新的应用程序拓扑结构大多是基于API的，因此本文假设后端仅公开REST API，不包含任何用户界面内容。应用程序应尝试穷尽地覆盖所有可能的故障模式，并且仅使用5xx错误来指示无法满足的请求的响应，但不作为响应的一部分提供任何会暴露实现细节的内容。为此，RFC 7807 - HTTP API问题详情定义了一种文档格式。
对于错误日志操作本身，应使用日志记录速查表。本文侧重于错误处理部分。

方案¶

对于每种技术栈，建议采用以下配置选项

标准Java Web应用¶

对于这种应用程序，可以在web.xml部署描述符级别配置全局错误处理器。

我们在此提出一种可用于Servlet规范2.5及更高版本的配置。

通过此配置，任何意外错误都会导致重定向到error.jsp页面，在该页面中，错误将被跟踪并返回一个通用响应。

在web.xml文件中配置重定向

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" ns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
version="3.0">
...
    <error-page>
        <exception-type>java.lang.Exception</exception-type>
        <location>/error.jsp</location>
    </error-page>
...
</web-app>

error.jsp文件的内容

<%@ page language="java" isErrorPage="true" contentType="application/json; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%
String errorMessage = exception.getMessage();
//Log the exception via the content of the implicit variable named "exception"
//...
//We build a generic response with a JSON format because we are in a REST API app context
//We also add an HTTP response header to indicate to the client app that the response is an error
response.setHeader("X-ERROR", "true");
//Note that we're using an internal server error response
//In some cases it may be prudent to return 4xx error codes, when we have misbehaving clients
response.setStatus(500);
%>
{"message":"An error occur, please retry"}

Java SpringMVC/SpringBoot Web应用¶

通过SpringMVC或SpringBoot，您可以通过在项目中实现以下类来定义全局错误处理器。Spring Framework 6引入了基于RFC 7807的问题详情。

我们通过注解@ExceptionHandler指示处理器在应用程序抛出任何继承自java.lang.Exception类的异常时进行处理。我们还使用ProblemDetail类来创建响应对象。

import org.springframework.http.HttpStatus;
import org.springframework.http.ProblemDetail;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;
import org.springframework.web.context.request.WebRequest;
import org.springframework.web.servlet.mvc.method.annotation.ResponseEntityExceptionHandler;

/**
 * Global error handler in charge of returning a generic response in case of unexpected error situation.
 */
@RestControllerAdvice
public class RestResponseEntityExceptionHandler extends ResponseEntityExceptionHandler {

    @ExceptionHandler(value = {Exception.class})
    public ProblemDetail handleGlobalError(RuntimeException exception, WebRequest request) {
        //Log the exception via the content of the parameter named "exception"
        //...
        //Note that we're using an internal server error response
        //In some cases it may be prudent to return 4xx error codes, if we have misbehaving clients
        //By specification, the content-type can be "application/problem+json" or "application/problem+xml"
        return ProblemDetail.forStatusAndDetail(HttpStatus.INTERNAL_SERVER_ERROR, "An error occur, please retry");
    }
}

参考资料

ASP NET Core Web应用¶

使用ASP.NET Core，您可以通过指定异常处理器是一个专用的API控制器来定义全局错误处理器。

专用于错误处理的API控制器内容

using Microsoft.AspNetCore.Authorization;
using Microsoft.AspNetCore.Diagnostics;
using Microsoft.AspNetCore.Mvc;
using System;
using System.Collections.Generic;
using System.Net;

namespace MyProject.Controllers
{
    /// <summary>
    /// API Controller used to intercept and handle all unexpected exception
    /// </summary>
    [Route("api/[controller]")]
    [ApiController]
    [AllowAnonymous]
    public class ErrorController : ControllerBase
    {
        /// <summary>
        /// Action that will be invoked for any call to this Controller in order to handle the current error
        /// </summary>
        /// <returns>A generic error formatted as JSON because we are in a REST API app context</returns>
        [HttpGet]
        [HttpPost]
        [HttpHead]
        [HttpDelete]
        [HttpPut]
        [HttpOptions]
        [HttpPatch]
        public JsonResult Handle()
        {
            //Get the exception that has implied the call to this controller
            Exception exception = HttpContext.Features.Get<IExceptionHandlerFeature>()?.Error;
            //Log the exception via the content of the variable named "exception" if it is not NULL
            //...
            //We build a generic response with a JSON format because we are in a REST API app context
            //We also add an HTTP response header to indicate to the client app that the response
            //is an error
            var responseBody = new Dictionary<String, String>{ {
                "message", "An error occur, please retry"
            } };
            JsonResult response = new JsonResult(responseBody);
            //Note that we're using an internal server error response
            //In some cases it may be prudent to return 4xx error codes, if we have misbehaving clients
            response.StatusCode = (int)HttpStatusCode.InternalServerError;
            Request.HttpContext.Response.Headers.Remove("X-ERROR");
            Request.HttpContext.Response.Headers.Add("X-ERROR", "true");
            return response;
        }
    }
}

在应用程序Startup.cs文件中定义异常处理器到专用错误处理API控制器的映射

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;

namespace MyProject
{
    public class Startup
    {
...
        public void Configure(IApplicationBuilder app, IHostingEnvironment env)
        {
            //First we configure the error handler middleware!
            //We enable the global error handler in others environments than DEV
            //because debug page are useful during implementation
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }
            else
            {
                //Our global handler is defined on "/api/error" URL so we indicate to the
                //exception handler to call this API controller
                //on any unexpected exception raised by the application
                app.UseExceptionHandler("/api/error");

                //To customize the response content type and text, use the overload of
                //UseStatusCodePages that takes a content type and format string.
                app.UseStatusCodePages("text/plain", "Status code page, status code: {0}");
            }

            //We configure others middlewares, remember that the declaration order is important...
            app.UseMvc();
            //...
        }
    }
}

参考资料

使用ASP.Net Core进行异常处理

ASP NET Web API Web应用¶

使用ASP.NET Web API（来自标准.NET框架而非.NET Core框架），您可以定义和注册处理器，以便跟踪和处理应用程序中发生的任何错误。

定义用于跟踪错误详情的处理器

using System;
using System.Web.Http.ExceptionHandling;

namespace MyProject.Security
{
    /// <summary>
    /// Global logger used to trace any error that occurs at application wide level
    /// </summary>
    public class GlobalErrorLogger : ExceptionLogger
    {
        /// <summary>
        /// Method in charge of the management of the error from a tracing point of view
        /// </summary>
        /// <param name="context">Context containing the error details</param>
        public override void Log(ExceptionLoggerContext context)
        {
            //Get the exception
            Exception exception = context.Exception;
            //Log the exception via the content of the variable named "exception" if it is not NULL
            //...
        }
    }
}

定义用于错误管理的处理器，以返回通用响应

using Newtonsoft.Json;
using System;
using System.Collections.Generic;
using System.Net;
using System.Net.Http;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Web.Http;
using System.Web.Http.ExceptionHandling;

namespace MyProject.Security
{
    /// <summary>
    /// Global handler used to handle any error that occurs at application wide level
    /// </summary>
    public class GlobalErrorHandler : ExceptionHandler
    {
        /// <summary>
        /// Method in charge of handle the generic response send in case of error
        /// </summary>
        /// <param name="context">Error context</param>
        public override void Handle(ExceptionHandlerContext context)
        {
            context.Result = new GenericResult();
        }

        /// <summary>
        /// Class used to represent the generic response send
        /// </summary>
        private class GenericResult : IHttpActionResult
        {
            /// <summary>
            /// Method in charge of creating the generic response
            /// </summary>
            /// <param name="cancellationToken">Object to cancel the task</param>
            /// <returns>A task in charge of sending the generic response</returns>
            public Task<HttpResponseMessage> ExecuteAsync(CancellationToken cancellationToken)
            {
                //We build a generic response with a JSON format because we are in a REST API app context
                //We also add an HTTP response header to indicate to the client app that the response
                //is an error
                var responseBody = new Dictionary<String, String>{ {
                    "message", "An error occur, please retry"
                } };
                // Note that we're using an internal server error response
                // In some cases it may be prudent to return 4xx error codes, if we have misbehaving clients
                HttpResponseMessage response = new HttpResponseMessage(HttpStatusCode.InternalServerError);
                response.Headers.Add("X-ERROR", "true");
                response.Content = new StringContent(JsonConvert.SerializeObject(responseBody),
                                                     Encoding.UTF8, "application/json");
                return Task.FromResult(response);
            }
        }
    }
}

在应用程序WebApiConfig.cs文件中注册这两个处理器

using MyProject.Security;
using System.Web.Http;
using System.Web.Http.ExceptionHandling;

namespace MyProject
{
    public static class WebApiConfig
    {
        public static void Register(HttpConfiguration config)
        {
            //Register global error logging and handling handlers in first
            config.Services.Replace(typeof(IExceptionLogger), new GlobalErrorLogger());
            config.Services.Replace(typeof(IExceptionHandler), new GlobalErrorHandler());
            //Rest of the configuration
            //...
        }
    }
}

将Web.config文件中的csharp <system.web>节点下的customErrors部分设置如下。

<configuration>
    ...
    <system.web>
        <customErrors mode="RemoteOnly"
                      defaultRedirect="~/ErrorPages/Oops.aspx" />
        ...
    </system.web>
</configuration>

参考资料

原型源代码¶

为找到正确的设置而创建的所有沙盒项目的源代码都存储在此GitHub仓库中。

附录 HTTP错误¶

HTTP错误的参考资料可以在这里找到：RFC 2616。使用不提供实现细节的错误消息对于避免信息泄露非常重要。通常，对于由HTTP客户端错误（例如未经授权的访问、请求体过大）导致的请求，请考虑使用4xx错误代码；对于由于不可预见的错误在服务器端触发的错误，请使用5xx。确保应用程序监控5xx错误，因为它们很好地表明应用程序在某些输入集下失败。
